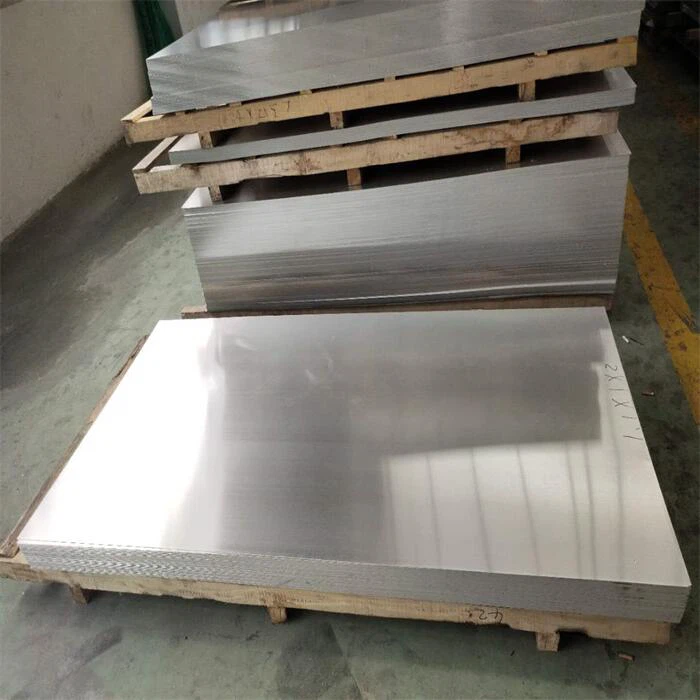

5456 Alloy Aluminum Properties







5456 Alloy Aluminum Chemical Composition:



Aluminum (Al): Balance

Magnesium (Mg): 4.7-5.5%

Manganese (Mn): 0.50-1.0%

Iron (Fe): 0.4% max

Silicon (Si): 0.25% max

Copper (Cu): 0.1% max

Chromium (Cr): 0.05-0.2%

Zinc (Zn): 0.25% max

Other Elements: 0.05% max (each), 0.15% max (total)



5456 Alloy Aluminum Mechanical Properties :

Tensile Strength: 50,000 psi (345 MPa)

Yield Strength: 38,000 psi (262 MPa)

Elongation: 12-18%

Hardness (Brinell): 95 HB

Density: 2.66 g/cm³



The alloy also exhibits excellent fatigue resistance. It can withstand cyclic loading and repeated stress without succumbing to premature failure. This property is vital in dynamic applications like the aerospace industry, where aircraft components are constantly subjected to fluctuating loads during flight. Components made from 5456 alloy aluminum, such as wing spars and fuselage frames, can maintain their integrity over extended periods, enhancing the safety and reliability of air travel.



In terms of corrosion resistance, 5456 alloy aluminum performs admirably, especially in marine and coastal environments. It has a natural ability to form a stable oxide layer that shields it from the corrosive effects of seawater, salt spray, and humidity. This makes it an ideal choice for shipbuilding, offshore structures, and marine equipment. For instance, the hulls and decks of ships made from 5456 alloy aluminum can resist corrosion for many years, reducing the need for frequent and costly maintenance and replacement.

The thermal conductivity of 5456 alloy aluminum is another significant property. It allows for efficient heat transfer, which is beneficial in applications where heat dissipation is essential. In heat exchangers and cooling systems, the alloy can quickly conduct heat away from critical components, preventing overheating and ensuring proper functioning. This property also makes it useful in electronics, where it can help dissipate heat generated by high-power components, thereby increasing their lifespan and performance.



Moreover, 5456 alloy aluminum has good machinability. It can be easily cut, drilled, milled, and shaped using standard machining tools and techniques. This enables manufacturers to fabricate complex and precise components with relative ease. The alloy's machinability, combined with its other properties, makes it a popular choice for a wide range of industries, from automotive to defense.



In conclusion, the 5456 alloy aluminum's properties of high strength, fatigue resistance, corrosion resistance, thermal conductivity, and machinability make it a versatile and reliable material. Its unique combination of characteristics continues to drive its extensive use in various industrial sectors, and as research and development progress, new and more innovative applications are likely to emerge.
