JIS SUJ 2- L3 Tool Steel - 1.2067 - 100Cr6 - SAE 52100
Products Description JIS SUJ 2- L3 Tool Steel - 1.2067 - 100Cr6 - SAE 52100 JIS SUJ 2, also known as L3 tool steel, 1.2067, 100Cr6, and SAE 52100, is a highly regarded and versatile material in the field of tool steels. This steel is renowned for its exceptional mechanical properties, making it...
Description
Products Description
Chemical Composition:
| Standard/Steel Grade | Chemical Composition(%) | |||||||
| Standard/Steel Grade | C | Si | Mn | Cr | V | P,S | ||
| GB | GCr15 | 0.95-1.05 | 0.15-0.35 | 0.20-0.40 | 1.30-1.65 | - | ≤0.03 | |
| AISI | L3 | 0.95-1.10 | 0.10-0.50 | 0.25-0.80 | 1.30-1.70 | 0.10-0.30 | ≤0.03 | |
| DIN | 102Cr6/1.2067 | 0.95-1.10 | 0.15-0.35 | 0.25-0.40 |
1.35-1.65 |
- | ≤0.03 | |
| JIS | SUJ2 | 0.95-1.10 | 0.15-0.35 | ≤ 0.50 | 1.30-1.60 | - | ≤0.03 | |
JIS SUJ 2, also known as L3 tool steel, 1.2067, 100Cr6, and SAE 52100, is a highly regarded and versatile material in the field of tool steels. This steel is renowned for its exceptional mechanical properties, making it a top choice for a wide range of applications.
One of the key characteristics of JIS SUJ 2 is its high hardness. It can be heat-treated to achieve extremely high levels of hardness, which gives it excellent wear resistance and the ability to hold a sharp edge. This makes it ideal for use in cutting tools, such as knives, saw blades, and drills.
In addition to hardness, JIS SUJ 2 also offers excellent toughness. It can withstand high levels of stress and impact without cracking or breaking, making it suitable for applications where durability is crucial. This toughness is a result of its carefully balanced chemical composition and heat treatment process.

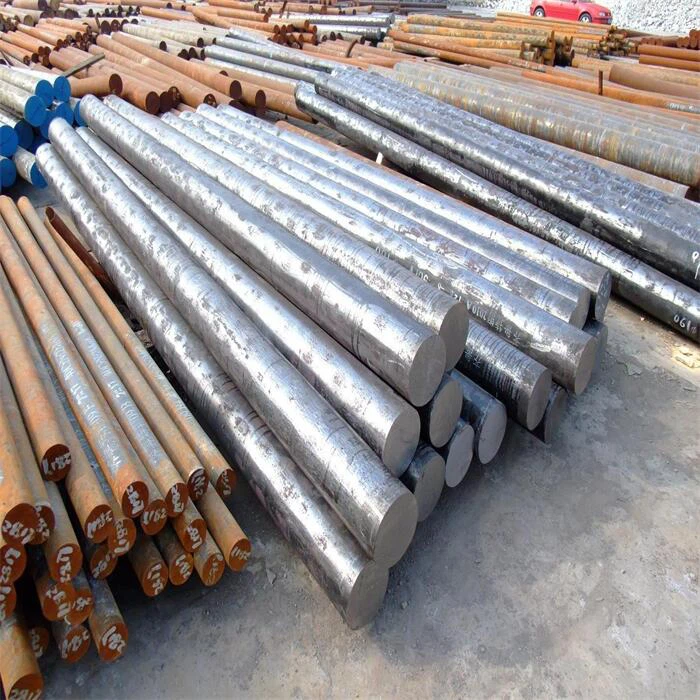

JIS SUJ 2 is manufactured using advanced processes to ensure consistent quality and performance. The steel is melted and refined to remove impurities and achieve a homogeneous microstructure. It is then hot rolled or forged into bars, sheets, or other shapes, followed by heat treatment to optimize its mechanical properties.
Heat treatment of JIS SUJ 2 typically involves a series of steps, including annealing, quenching, and tempering. Annealing is done to relieve internal stresses and improve the steel's machinability. Quenching rapidly cools the steel to increase its hardness, while tempering reduces brittleness and improves toughness.
