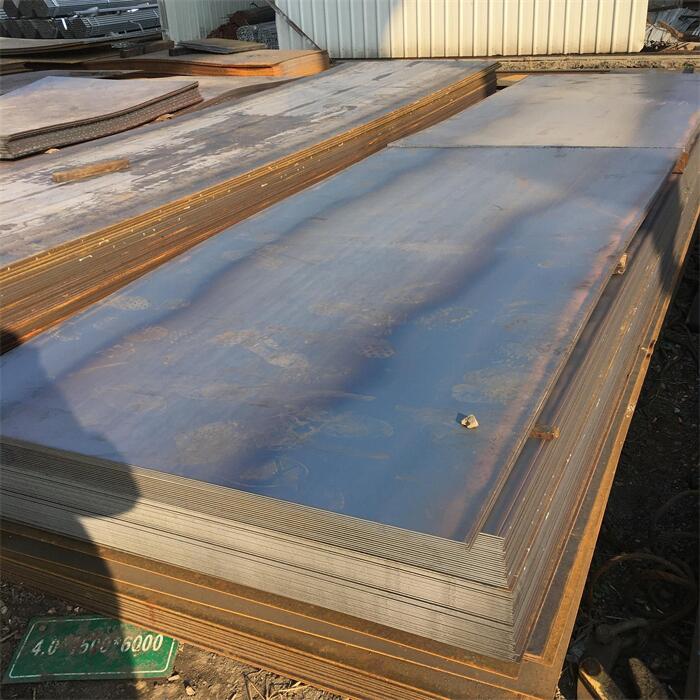

LR B Steel

Shipbuilding Steel: Essential Properties for Maritime Excellence



Shipbuilding steel is a crucial material in the construction of marine vessels, playing a vital role in ensuring the safety, durability, and performance of ships. To meet the demanding requirements of the marine environment, shipbuilding steel must possess a combination of specific properties. This comprehensive article explores the essential properties that shipbuilding steel typically needs.



Strength



One of the primary properties of shipbuilding steel is high strength. Ships are subjected to various forces and stresses during their operation, including the weight of the cargo, the dynamic forces of the sea, and the impact of waves. High-strength steel enables the ship's structure to withstand these forces without deformation or failure.



The strength of shipbuilding steel is measured in terms of yield strength and tensile strength. Yield strength represents the stress at which the steel begins to deform permanently, while tensile strength is the maximum stress the steel can withstand before breaking. Shipbuilding steels with higher yield and tensile strengths can support heavier loads and are better able to resist the harsh conditions at sea.



For example, high-strength steels such as AH36 and DH36 are commonly used in shipbuilding. These steels have yield strengths in the range of 355 MPa and tensile strengths up to 510 MPa. The use of such high-strength steels allows for the construction of larger and more efficient ships while maintaining structural integrity.



Toughness



Toughness is another essential property of shipbuilding steel. Toughness refers to the ability of the steel to absorb energy and resist fracture. In the marine environment, ships are exposed to dynamic loading conditions, such as impacts from waves and collisions with other vessels or objects. A tough steel can withstand these impacts without cracking or breaking, ensuring the safety of the ship and its crew.



Toughness is measured by performing impact tests at different temperatures. Shipbuilding steels are typically required to have a certain minimum level of toughness at low temperatures to ensure their performance in cold sea environments. For example, steels used in arctic regions must have excellent low-temperature toughness to prevent brittle fracture.



The microstructure of shipbuilding steel plays a significant role in determining its toughness. Fine-grained steels with a homogeneous microstructure tend to be more tough than steels with coarse grains or inhomogeneous structures. Additionally, the addition of certain alloying elements, such as nickel and manganese, can improve the toughness of shipbuilding steel.



Steel Grade	C	Si	Mn	P	S	Als
A	≤0.21	≤0.50	≥2.5c	≤0.035	≤0.035
B	≤0.21	≤0.35	0.8~1.2	≤0.035	≤0.035
D	≤0.21	≤0.35	0.6~1.2	≤0.035	≤0.035	≥0.015
E	≤0.18	≤0.35	0.7~1.2	≤0.035	≤0.035	≥0.015
AH32	≤0.18	≤0.50	0.9~1.6	≤0.035	≤0.035	≥0.015
DH32	≤0.18	≤0.50	0.9~1.6	≤0.035	≤0.035	≥0.015
EH32	≤0.18	≤0.50	0.9~1.6	≤0.035	≤0.035	≥0.015
FH32	≤0.18	≤0.50	0.9~1.6	≤0.035	≤0.035	≥0.015
AH36	≤0.18	≤0.50	0.9~1.6	≤0.035	≤0.035	≥0.015
DH36	≤0.18	≤0.50	0.9~1.6	≤0.035	≤0.035	≥0.015
EH36	≤0.18	≤0.50	0.9~1.6	≤0.035	≤0.035	≥0.015
FH36	≤0.18	≤0.50	0.9~1.6	≤0.035	≤0.035	≥0.015
AH40	≤0.18	≤0.50	0.9~1.6	≤0.035	≤0.035	≥0.015
DH40	≤0.18	≤0.50	0.9~1.6	≤0.035	≤0.035	≥0.015





Formability



Formability is the ability of shipbuilding steel to be shaped and formed into the required structural components. Ships are complex structures with various shapes and geometries, and the steel used in their construction must be able to be bent, rolled, and welded into these shapes. Good formability allows for efficient fabrication and reduces the risk of defects during the manufacturing process.



The formability of shipbuilding steel is influenced by several factors, including its ductility, yield strength, and hardenability. Steels with high ductility and low yield strength are generally more formable. Additionally, the addition of certain alloying elements can improve the formability of steel.



To ensure formability, shipbuilding steels are often tested for their mechanical properties and formability characteristics. This may include performing tensile tests, bend tests, and other tests to determine the steel's ability to be formed into the required shapes.





Why Choose Us?
We take pride in our ability to provide custom solutions for our customers' unique needs.
We analyze and compare the previous products and the current technical situation of our LR B Steel, and develop new technical specifications and processes.
Our customers trust us to deliver high-quality Cold-rolled Steel products on time and on budget.
We strictly implement the warm and thoughtful after-sales service, adhere to the development of good professional ethics.
We offer a wide range of Cold-rolled Steel products to meet diverse customer needs.
We adhere to the customer-centric and brand-oriented business philosophy, and continue to provide customers with reliable and excellent products and services.
Our factory is committed to upholding the highest standards of safety and quality.
All staff of our company and all departments work together to combine business management, professional technology, quantitative statistical methods and ideological education.
Our Cold-rolled Steel products are known for their durability and reliability.
Relying on the superior conditions and strong advantages of mass production, we are able to meet the different needs of our customers.





Hot Tags: lr b steel, China lr b steel suppliers, factory, E250C N J0 , 1 4539, 1 40006, S30300, Pure Copper, S32100
