What are the quality inspection methods for steel coils? Non - destructive testing methods:



Mechanical Property Testing



Tensile Test
The specimens of the steel coil are stretched by a tensile testing machine to measure mechanical property indicators such as yield strength, tensile strength, and elongation. During the test, the specimen is fixed on the grips of the tensile testing machine, and a tensile force is applied at a certain speed until the specimen fractures. The yield strength is the stress at which the material begins to have obvious plastic deformation. The tensile strength is the maximum stress that the material can withstand before fracture, and the elongation reflects the material's plastic deformation ability. These indicators are of great importance for evaluating the load - bearing capacity and deformation performance of the steel coil in practical applications. For example, the steel coils used in construction, mechanical manufacturing and other fields need to meet certain requirements for yield strength and elongation.



Impact Test
It is mainly used to test the toughness of the steel coil, especially the toughness in a low - temperature environment. The notched specimen is subjected to a single - impact bending load through an impact testing machine, and the energy absorbed when the specimen fractures is recorded. The magnitude of the impact - absorbed energy can reflect the ability of the steel coil to resist fracture when subjected to impact. In the building structures in some cold regions or the mechanical components that need to withstand dynamic impact, the impact toughness of the steel coil is highly required. For example, it is necessary to maintain sufficient toughness at low temperatures to prevent the material from brittle fracture.





















High Strength Chemical Composition
Grade	C	Si	Mn	P	S
DNV steel	0.18	0.10-0.35	0.9-1.6	0.035	0.035





Hardness Test
Hardness is a measure of the ability of the steel coil to resist local deformation. Commonly - used hardness - testing methods include Brinell hardness (HB), Rockwell hardness (HR), and Vickers hardness (HV). For example, in the Brinell hardness test, a cemented carbide ball with a certain diameter is pressed into the surface of the steel coil, and the hardness value is calculated according to the diameter of the indentation. The hardness test can quickly evaluate the machinability and wear - resistance and other properties of the steel coil. For some steel - coil application scenarios that require machining or have high wear - resistance requirements, hardness is an important quality indicator.











Why Choose Us?
We take pride in our ability to provide custom solutions for our customers' unique needs.

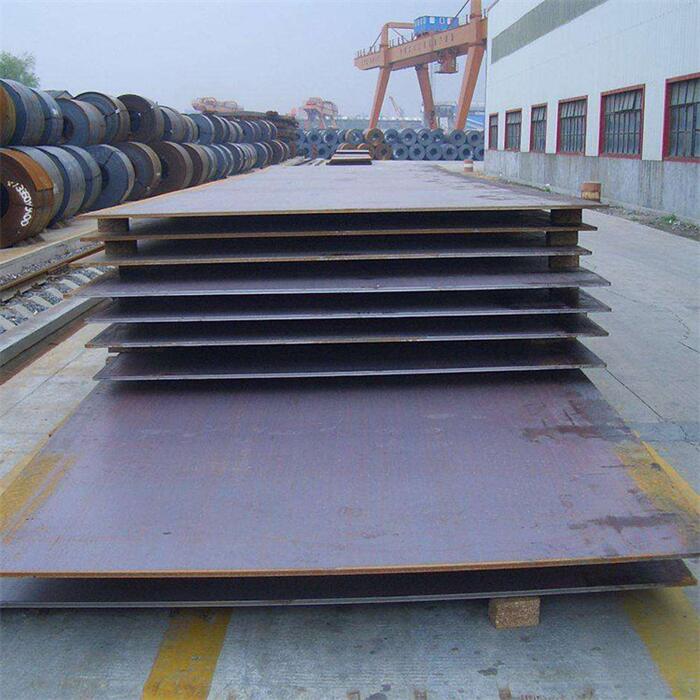

We analyze and compare the previous products and the current technical situation of our Pressure Vessel Steel Plate P355GH, and develop new technical specifications and processes.
Our customers trust us to deliver high-quality Cold-rolled Steel products on time and on budget.
We strictly implement the warm and thoughtful after-sales service, adhere to the development of good professional ethics.
We offer a wide range of Cold-rolled Steel products to meet diverse customer needs.
We adhere to the customer-centric and brand-oriented business philosophy, and continue to provide customers with reliable and excellent products and services.
Our factory is committed to upholding the highest standards of safety and quality.
All staff of our company and all departments work together to combine business management, professional technology, quantitative statistical methods and ideological education.
Our Cold-rolled Steel products are known for their durability and reliability.
Relying on the superior conditions and strong advantages of mass production, we are able to meet the different needs of our customers.
