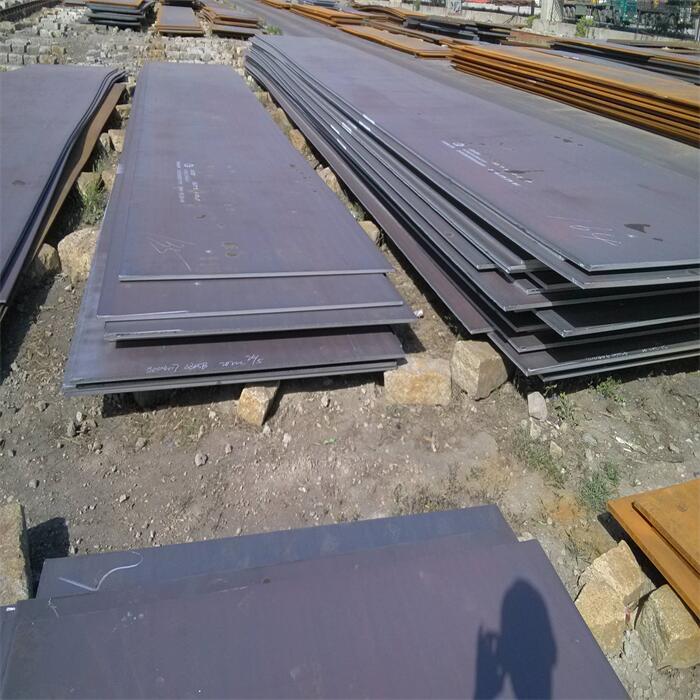

TU1/20g composite steel plate is a specialized bimetallic material that combines the high conductivity, corrosion resistance, and thermal transfer properties of TU1 pure copper with the structural strength, high-temperature stability, and cost-effectiveness of 20g boiler steel. This composite optimizes performance for applications requiring both mechanical robustness and functional surface properties (e.g., conductivity, heat transfer). Below is a detailed overview:

Material Composition and Properties

1. Cladding Material: TU1 (Pure Copper)

Type: High-purity oxygen-free copper (GB/T 5231-2012, equivalent to ASTM C10200) .

Chemical Composition: Cu ≥99.95%, with trace impurities (Ag ≤0.002%, Bi ≤0.001%, Pb ≤0.003%, etc.) to ensure purity .

Mechanical Properties:

Tensile strength: 200–240 MPa .

Yield strength (0.2% offset): ≥60 MPa .

Elongation: ≥45% (for annealed 状态) .

Functional Properties:

Electrical conductivity: ≥98% IACS (International Annealed Copper Standard) .

Thermal conductivity: ~391 W/(m·K) at 20°C .

Corrosion resistance: Excellent in non-oxidizing acids (e.g., dilute sulfuric acid), freshwater, and dry environments; susceptible to ammonia and strong oxidizing acids .

Advantages: Superior electrical/thermal conductivity, ductility, and solderability.

2. Base Material: 20g (Boiler Steel)

Type: Low-alloy high-temperature structural steel (GB/T 713-2014, equivalent to ASTM A515 Grade 60 for boiler applications) .

Chemical Composition: C (0.16–0.24%), Mn (0.35–0.65%), Si (0.17–0.37%), S ≤0.035%, P ≤0.035% .

Mechanical Properties:

Yield strength: ≥245 MPa (for thickness ≤16 mm) .

Tensile strength: 400–540 MPa .

Elongation: ≥24% .

High-Temperature Performance: Stable at temperatures up to 450°C, with good creep resistance and oxidation resistance under cyclic heating .

Advantages: Excellent weldability, high structural integrity under pressure, and cost-effectiveness for heavy-duty applications.

Manufacturing Process

TU1/20g composite plates are produced via roll bonding or explosive welding, ensuring a metallurgical bond between copper and steel:
