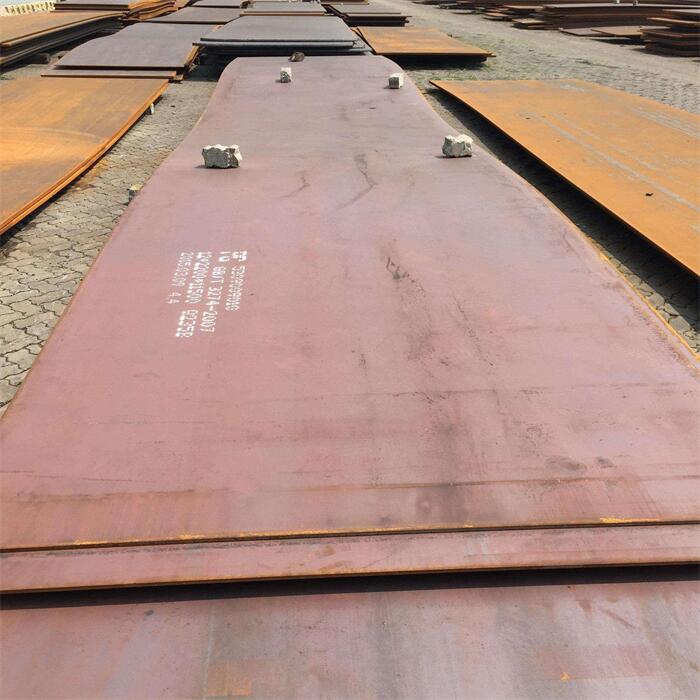

15CrMog High Pressure Boiler Steel Plate

Composition and Material Properties

- Carbon (C): 0.12 - 0.18%
- Silicon (Si): 0.17 - 0.37%
- Manganese (Mn): 0.40 - 0.70%
- Phosphorus (P): ≤ 0.025%
- Sulfur (S): ≤ 0.025%
- Nickel (Ni): ≤ 0.030%
- Copper (Cu): ≤ 0.020%
- Chromium (Cr): 0.80 - 1.10%
- Molybdenum (Mo): 0.45 - 0.55%

Yield Strength (Tensile Strength): ≥ 440 MPa

Tensile Strength: ≥ 590 MPa

Elongation: ≥ 20%

Impact Toughness (Impact Energy): ≥ 45 J (20°C)

When subjected to high temperatures, 15CrMoG retains its mechanical properties relatively well. It shows good creep resistance, which is the ability to withstand prolonged exposure to stress at elevated temperatures without significant deformation. This property is essential for ensuring the long-term reliability and safety of high-pressure boilers.

Furthermore, the hardness of 15CrMoG can vary depending on the heat treatment and processing conditions. Hardness is an important parameter that affects the wear resistance and durability of the steel plate in service.

In summary, 15CrMoG High Pressure Boiler Steel Plate's carefully controlled chemical composition and well-defined mechanical properties make it a reliable choice for high-pressure boiler applications. The combination of alloying elements and mechanical characteristics enables it to withstand the harsh operating conditions, high temperatures, and mechanical stresses encountered in boiler systems, ensuring the efficient and safe operation of industrial equipment. Ongoing research and development in materials science continue to optimize and enhance the properties of this steel plate to meet the evolving requirements of the power generation and industrial sectors.
