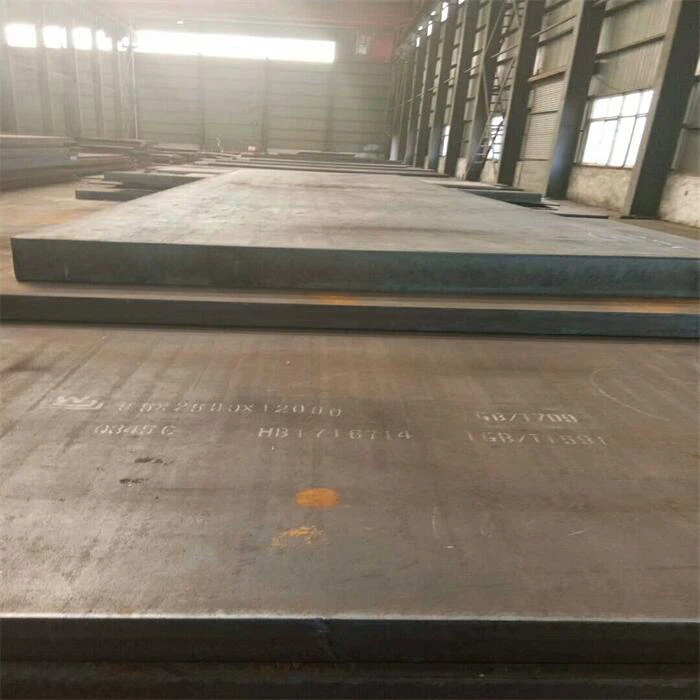

HSLA S420N S420NL Low Alloy High Strength Steel Plate
Products Description Here is detailed information about HSLA S420N and S420NL low - alloy high - strength steel plates: 1. Standard and Classification1 Standard : Both S420N and S420NL comply with the EN 10025 - 3 standard, which pertains to hot - rolled weldable fine - grain structural steels...
Description
Products Description
Here is detailed information about HSLA S420N and S420NL low - alloy high - strength steel plates:
1. Standard and Classification1
Standard: Both S420N and S420NL comply with the EN 10025 - 3 standard, which pertains to hot - rolled weldable fine - grain structural steels in the normalized or normalized - rolled state.
Classification: They belong to the category of low - alloy high - strength structural steels, designed for use in particularly loaded elements of welded structures.
2. Chemical Composition
The following are the maximum contents of main elements (in %):
| Element | S420N | S420NL |
|---|---|---|
| C | 0.20 | 0.20 |
| Si | 0.60 | 0.60 |
| Mn | 1.00 - 1.70 | 1.00 - 1.70 |
| P | 0.030 | 0.025 |
| S | 0.025 | 0.020 |
| N | 0.025 | 0.025 |
| Al (total) | 0.020 | 0.020 |
| Cu | 0.55 | 0.55 |
| Cr | 0.30 | 0.30 |
| Ni | 0.80 | 0.80 |
| Mo | 0.10 | 0.10 |
| Nb | 0.050 | 0.050 |
| V | 0.20 | 0.20 |
| Ti | 0.05 | 0.05 |
| Ceq (for thickness ≤ 63 mm) | 0.48 | 0.48 |
| Ceq (for thickness 63 - 80 mm) | 0.50 | 0.50 |
3. Mechanical Properties4
| Property | Details |
|---|---|
| Yield strength ReH (MPa) | For S420N and S420NL, the minimum yield strength varies with thickness. For example, for thickness up to 16 mm, it is 420 MPa; for 16 - 40 mm, it is 400 MPa; for 40 - 63 mm, it is 390 MPa; for 63 - 80 mm, it is 370 MPa; for 80 - 100 mm, it is 360 MPa; for 100 - 150 mm, it is 340 MPa; and for 150 - 200 mm, it is 330 MPa. |
| Tensile strength Rm (MPa) | For S420N and S420NL, when the thickness is up to 100 mm, it is 520 - 680 MPa; for 100 - 200 mm, it is 500 - 650 MPa. |
| Elongation A (%) | For S420N and S420NL, when the thickness is up to 16 mm, the minimum elongation is 19%; for 16 - 40 mm, it is 19%; for 40 - 63 mm, it is 19%; for 63 - 80 mm, it is 18%; and for 80 - 200 mm, it is 18%. |
| Impact energy | For S420NL, the impact energy at - 20°C is ≥ 27 J. The impact performance of S420N is tested at normal temperature, and its impact energy also meets relevant standards. |
