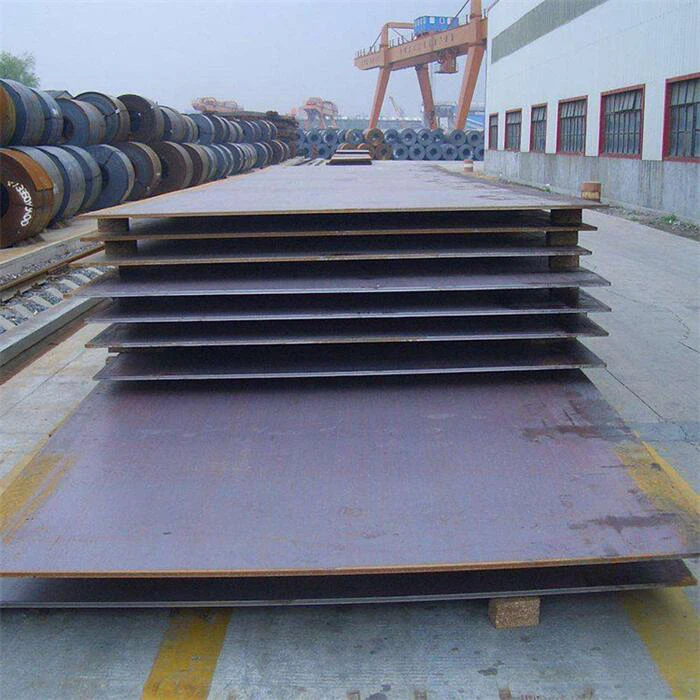

Low Alloy High Strength Bridge Building Steel Plate

Low alloy high strength bridge building steel plates are specialized structural materials designed to withstand heavy loads, dynamic stresses, and environmental challenges in bridge construction. These plates combine low alloy content with high strength, toughness, and durability, making them ideal for critical bridge components. Below is a detailed overview of their characteristics, applications, and technical specifications:

1. Key Standards and Grades

Standards:

China: GB/T 1591 (low alloy high strength structural steel), GB/T 714 (bridge steel).

Europe: EN 10025-3/-4 (fine-grained structural steel).

USA: ASTM A709 (high-strength low-alloy steel for bridges).

Common Grades:

China: Q345qD, Q370qE, Q420qE ("q" denotes bridge steel; letters indicate impact test temperatures: D=-20℃, E=-40℃).

Europe: S355NL, S420ML (normalized or thermomechanical rolled, with "L" indicating low-temperature toughness).

USA: ASTM A709 Gr50, Gr70 (Gr50: yield strength ≥345 MPa; Gr70: ≥485 MPa).



2. Mechanical Properties

Grade	Yield Strength (ReL, MPa)	Tensile Strength (Rm, MPa)	Elongation (%)	Impact Test (Temperature, KV2, J)
Q345qD	≥345 (≤16mm)	470–630	≥21	-20℃, ≥34J
Q420qE	≥420 (≤16mm)	520–680	≥19	-40℃, ≥27J
ASTM A709 Gr50	≥345	450–620	≥18	-29℃ (optional), ≥27J

















Key Features:

High Strength-to-Weight Ratio: Reduces material usage and structural weight compared to carbon steel.

Fatigue Resistance: Designed to withstand cyclic loading from traffic and environmental vibrations.

Low-Temperature Toughness: Grades like Q345qE or S355NL perform well in cold climates (impact tests at -40℃).
