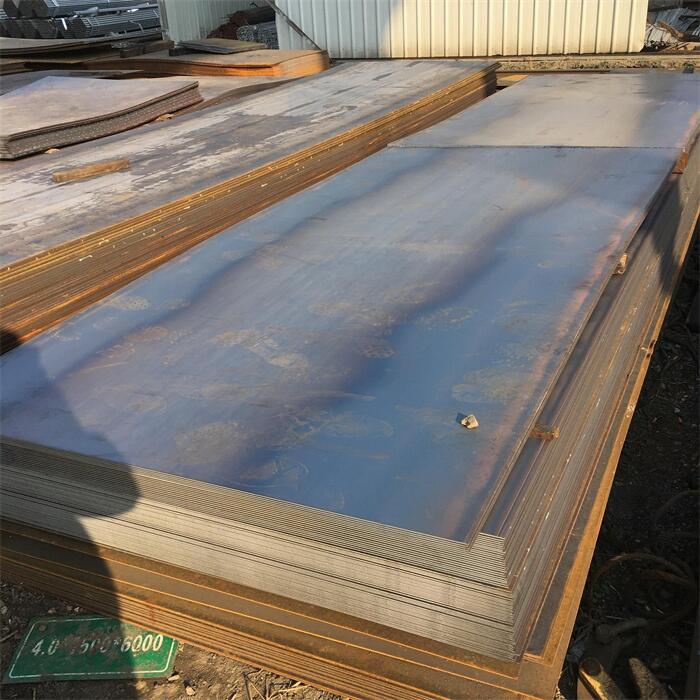

DH Grade Ship Building Plate





"DH Grade Ship Building Plate" refers to a specific grade of shipbuilding steel.



Characteristics:



High strength: DH grade shipbuilding plates are known for their relatively high strength, which enables them to withstand the various stresses and loads that ships are subjected to during operation. This includes the forces from waves, wind, cargo loading and unloading, and the ship's own weight.

Good toughness: In addition to strength, these plates possess good toughness. This means they can absorb energy without fracturing easily, providing a degree of safety and durability in case of impacts or sudden loads.

Weldability: They are designed to be weldable, allowing for easy fabrication and assembly during ship construction. Skilled welders can join the plates using appropriate welding techniques to ensure strong and reliable joints.

Corrosion resistance: To some extent, DH grade plates have resistance to corrosion from seawater and the marine environment. However, additional protective measures such as coatings or cathodic protection may be necessary to enhance their longevity.

Applications:



Hull construction: DH grade shipbuilding plates are widely used in the construction of ship hulls. They form the main structure of the ship, providing strength and stability. Different parts of the hull may require plates of different thicknesses and specifications depending on the stress levels and design requirements.

Decks and bulkheads: These plates are also used for building decks and bulkheads within the ship. Decks need to support the weight of cargo and equipment, while bulkheads divide the ship into different compartments for safety and functionality.

Offshore structures: In addition to shipbuilding, DH grade plates may be used in the construction of offshore platforms and other marine structures. These structures face similar challenges as ships in terms of exposure to the marine environment and need materials with high strength and durability.







Grade	Chemical Composition Differences
General strength (e.g., A, B, D, E)	Relatively lower alloying elements. Carbon content might be around 0.20%. Manganese content in the range of 0.50 - 1.00%. Low amounts of other alloying elements like chromium, nickel, etc.
High strength (e.g., AH32, AH36, DH32, DH36, EH32, EH36, FH32, FH36)	Higher alloying elements. Carbon content usually less than 0.18%. Manganese content between 0.90 - 1.60%. May contain significant amounts of elements like copper (Cu), chromium (Cr), nickel (Ni), molybdenum (Mo), niobium (Nb), vanadium (V), titanium (Ti), etc.







The specific properties and applications of DH grade shipbuilding plates can vary depending on the manufacturer, grade variation (such as DH32, DH36, etc.), and the requirements of the particular ship or project. When using these plates, it is important to follow relevant industry standards and specifications to ensure quality and safety.

There are the following differences in performance among different grades of shipbuilding steel plates:



I. Strength Performance



General strength shipbuilding steel plates (such as grades A, B, D, and E):

The yield strength is relatively low, usually around 235 MPa. For example, the yield strength of grade A ship plates is generally not less than 235 MPa.

The tensile strength is also at a medium level, approximately between 400 - 520 MPa. For instance, the tensile strength of grade B ship plates is within this range.

These general strength ship plates are mainly suitable for small and medium-sized ships or parts with low strength requirements, such as the hulls of fishing boats and non-critical structural parts of cargo ships.

High-strength shipbuilding steel plates (such as AH32, AH36, DH32, DH36, EH32, EH36, FH32, FH36, etc.):

The yield strength is significantly higher than that of general strength ship plates. For example, the yield strength of AH36 ship plates is not less than 355 MPa.

The tensile strength is even higher and can reach 490 - 630 MPa. For example, the tensile strength of DH36 ship plates is within this interval.

High-strength ship plates can withstand greater loads and stresses and are suitable for large ocean-going ships and marine engineering structures where high material performance is required.



II. Toughness Performance



General strength shipbuilding steel plates:

They have a certain degree of toughness at room temperature, but the toughness may decrease in a low-temperature environment.

For example, in an environment around 0°C, the impact absorption energy of general strength ship plates is relatively low and may be around 20 - 30J.

High-strength shipbuilding steel plates:

They have good toughness, especially maintaining good performance in a low-temperature environment.

Taking EH36 ship plates as an example, at a low temperature of -40°C, its impact absorption energy can reach more than 27J.

High-strength ship plates usually undergo special heat treatment or alloying processes to improve their toughness and impact resistance.
