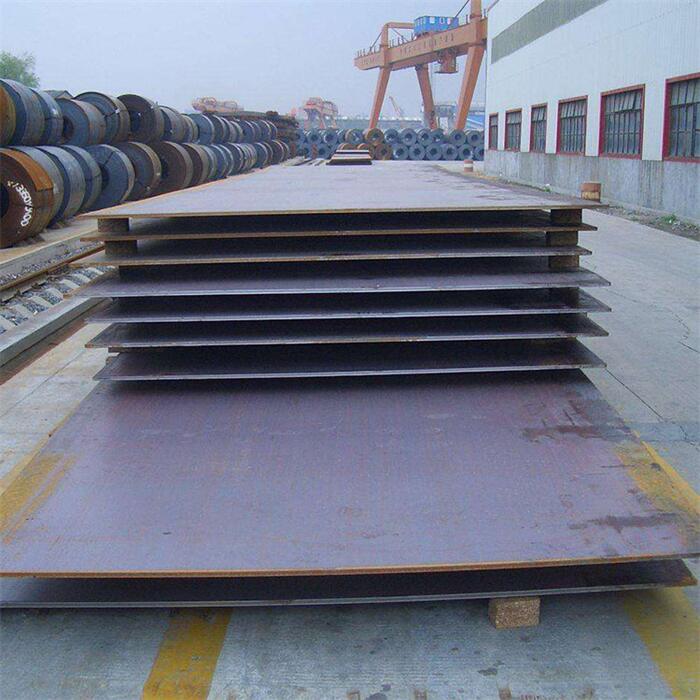

GL-F40 Steel Plate











Ship Types
Cargo Ships:
For bulk carriers, they are mainly used to transport bulk cargoes such as coal and ores. Due to the high density of the cargo and the possible large impact on the ship's hull during loading and unloading, the bottom and side plates of the ship need to be thick enough to bear the weight of the cargo and the impact of loading and unloading. Generally, the thickness of the bottom plate is about 18 - 20mm, and the thickness of the side plate is about 16 - 18mm.
Container ships are mainly used to transport containers. The stacking weight of containers and the stability during the voyage need to be considered. The deck thickness requirements are relatively high. The deck thickness of a large - sized container ship may reach about 20mm, because it has to bear the weight of a large number of containers (for example, a ship that can carry 10,000 standard containers) and the dynamic load under the action of sea waves.

















Specification we supply：

Thickness	3-200mm
Width	1500-4000mm
Length	5000-15000mm



Tankers and Chemical Tankers:
These ships are used to transport liquid cargoes. The thickness of the liquid tank's bulkhead is the key. Because the liquid will slosh during the voyage and generate dynamic pressure, the thickness of the bulkhead steel plate is usually about 14 - 18mm to prevent liquid leakage and ensure transportation safety. At the same time, the thickness of the ship's outer plate also needs to consider factors such as collision prevention and corrosion resistance, generally between 14 - 20mm.




Ship Sizes
Large - Sized Ships:
Large - sized ships (such as ultra - large tankers or bulk carriers with a deadweight of hundreds of thousands of tons) have a huge self - weight. The hydrostatic pressure and wave impact force during the voyage borne by the ship's hull structure are very large. To ensure the strength and stability of the hull, the thickness of the steel plate will be increased accordingly. For example, the thickness of the bottom plate of an ultra - large tanker may reach 30 - 50mm, and the thickness of the side plate is about 20 - 30mm.




Load - Bearing Requirements
Cargo Weight and Distribution:
If a ship is to transport heavy objects, such as large - scale mechanical equipment or high - density ores, the thickness of the bottom and supporting structure of the ship needs to be increased. For example, for a roll - on/roll - off ship that transports heavy - duty construction machinery, the thickness of the deck and ramp parts of the steel plate needs to be designed according to the weight and driving requirements of the construction machinery and may reach about 20 - 30mm to ensure that the cargo can be safely carried and moved.
Personnel and Equipment Distribution:
For passenger ships and engineering ships (such as supply ships for offshore drilling platforms), the distribution of personnel and equipment needs to be considered. If people are concentrated in certain areas, such as the cabins and dining rooms of passenger ships, or equipment is concentrated on the working deck of engineering ships, the thickness of the deck and bulkhead in these areas needs to be appropriately increased to ensure the safety of the structure, generally about 12 - 20mm, to prevent structural damage caused by local overloading.
