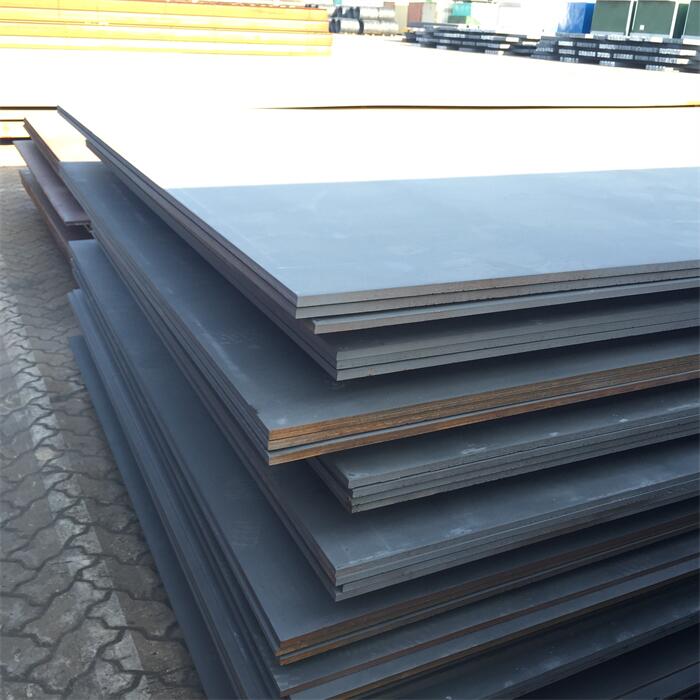

SA387 Gr22 alloy steel plates are a type of chromium-molybdenum (Cr-Mo) alloy steel plates specified under the ASME (American Society of Mechanical Engineers) standard, widely recognized for their excellent high-temperature performance, corrosion resistance, and structural stability. They are primarily designed for high-pressure, high-temperature (HPHT) applications in critical industries. Below is a detailed overview:

Chemical Composition

The key alloying elements in SA387 Gr22 plates contribute to their superior properties:



Chromium (Cr): 2.00–2.50% – Forms a dense oxide film to resist high-temperature oxidation and enhances corrosion resistance.

Molybdenum (Mo): 0.90–1.10% – Strengthens the ferrite matrix, improves creep resistance (resistance to deformation under long-term high-temperature stress), and stabilizes mechanical properties at elevated temperatures.

Carbon (C): ≤0.15% – Balances strength and weldability; low carbon content minimizes the risk of hardening and cracking during welding.

Other elements: Manganese (Mn), Silicon (Si), Phosphorus (P), Sulfur (S) (with strict limits to ensure purity and performance).

Mechanical Properties

After standard heat treatment (normalizing + tempering), SA387 Gr22 plates exhibit the following key mechanical properties:

















Tensile strength: 415–585 MPa

Yield strength: ≥205 MPa

Elongation: ≥22% (in 200 mm gauge length)

Impact toughness: Good toughness at room and elevated temperatures, ensuring resistance to brittle fracture under dynamic loads.

Key Properties

High-Temperature Performance

Service temperature range: Can operate long-term in temperatures up to 550°C. At these temperatures, they maintain stable tensile strength, yield strength, and creep resistance, making them suitable for continuous exposure to high heat.

Creep resistance: Molybdenum's presence inhibits grain boundary sliding and dislocation movement at high temperatures, reducing the risk of gradual deformation under sustained loads – critical for boiler tubes, superheaters, and pressure vessels.











Why Choose Us?
We take pride in our ability to provide custom solutions for our customers' unique needs.
We analyze and compare the previous products and the current technical situation of our SA387 Gr22 Alloy Steel Plates, and develop new technical specifications and processes.
Our customers trust us to deliver high-quality Cold-rolled Steel products on time and on budget.
We strictly implement the warm and thoughtful after-sales service, adhere to the development of good professional ethics.
We offer a wide range of Cold-rolled Steel products to meet diverse customer needs.
We adhere to the customer-centric and brand-oriented business philosophy, and continue to provide customers with reliable and excellent products and services.
Our factory is committed to upholding the highest standards of safety and quality.
All staff of our company and all departments work together to combine business management, professional technology, quantitative statistical methods and ideological education.
Our Cold-rolled Steel products are known for their durability and reliability.
Relying on the superior conditions and strong advantages of mass production, we are able to meet the different needs of our customers.
