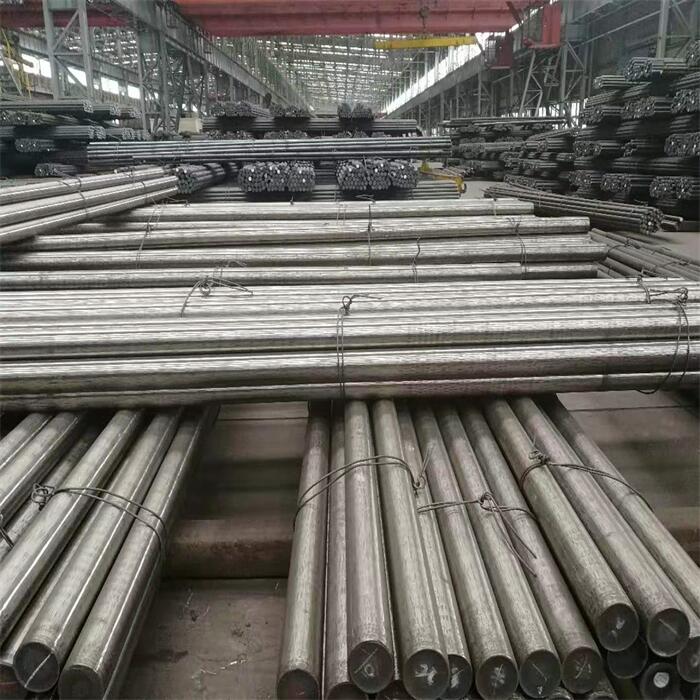

5140 Steel







5140 Steel: Properties and Applications



5140 steel is a medium carbon, chromium alloy steel known for its excellent mechanical properties and versatility. This steel is widely used in various industries due to its combination of strength, toughness, and wear resistance.



Chemical Composition



5140 steel typically contains the following elements:



Carbon (C): 0.38% - 0.43%

Manganese (Mn): 0.75% - 1.00%

Silicon (Si): 0.15% - 0.35%

Chromium (Cr): 0.80% - 1.10%

Phosphorus (P): ≤0.035%

Sulfur (S): ≤0.040%



The addition of chromium and other alloying elements enhances the steel's hardenability, strength, and wear resistance.



[Insert a pie chart showing the percentage composition of the main elements in 5140 steel.]



Mechanical Properties



5140 steel exhibits the following mechanical properties:



Tensile Strength: 930 - 1080 MPa

Yield Strength: 785 MPa min

Elongation: 12% min

Reduction in Area: 40% min

Hardness: 207 - 269 HBW



The high tensile strength and yield strength make 5140 steel suitable for applications that require strength and durability. The good elongation and reduction in area indicate its ductility and ability to absorb energy without fracturing.



[Insert a bar graph comparing the tensile strength, yield strength, elongation, and reduction in area of 5140 steel with other commonly used steels.]



Heat Treatment



5140 steel can be heat-treated to achieve different hardness levels and mechanical properties. Common heat treatment processes include quenching and tempering.



Quenching: Heating the steel to a temperature of 845 - 870°C (1550 - 1600°F) and then quenching in oil or water.

Tempering: Heating the quenched steel to a temperature of 540 - 650°C (1000 - 1200°F) and holding for a specific time to relieve stress and improve toughness.



The heat treatment process can significantly affect the mechanical properties of 5140 steel, allowing it to be tailored for specific applications.



[Insert a flow chart illustrating the heat treatment process of 5140 steel.]



Applications



5140 steel is widely used in the following industries:



Automotive: For manufacturing components such as axles, shafts, gears, and springs. The steel's strength and wear resistance are essential for these applications.

Example: In a pickup truck's rear axle, 5140 steel provides the necessary durability to handle heavy loads and rough terrain.

Machinery: Used in the production of machine parts, such as gears, shafts, and bolts. The high strength and toughness of 5140 steel ensure the reliability and durability of machinery.

Example: In a industrial milling machine's main shaft, 5140 steel can withstand the high rotational forces and wear.

Tooling: Can be used for making cutting tools and dies due to its hardness and wear resistance.

Example: A metal stamping die made of 5140 steel can produce thousands of parts with minimal wear.

Aerospace: In some applications where strength and toughness are required, such as landing gear components and structural parts.

Example: The landing gear strut of a small aircraft may be made of 5140 steel for its ability to handle the impact and stress of landing.



[Insert images of various applications of 5140 steel, such as an automotive axle, a machine gear, a cutting tool, and an aerospace component. Also include captions highlighting the specific application examples.]



In conclusion, 5140 steel is a versatile alloy steel with excellent mechanical properties. Its combination of strength, toughness, and wear resistance makes it suitable for a wide range of applications in various industries. The ability to heat-treat the steel allows for customization of its properties to meet specific requirements. Whether in automotive, machinery, tooling, or aerospace applications, 5140 steel plays an important role in ensuring the performance and reliability of components and structures.
