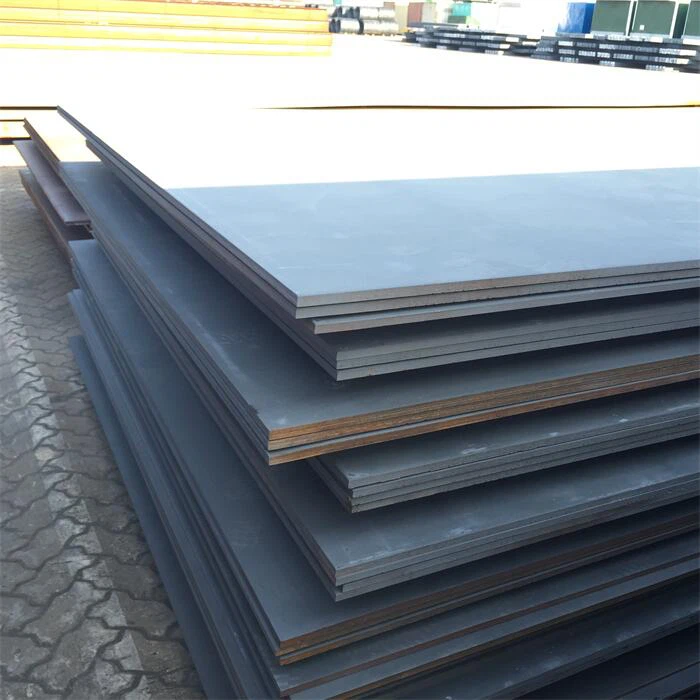

AISI 4130 Steel





AISI 4130 Steel Chemical Composition

Carbon	:	0.28-0.33%
Manganese	:	0.40-0.60%
Silicon	:	0.10-0.35%
Nickel	:	0.25% max

Chromium	:	0.90-1.10%
Molybdenum	:	0.15-0.25%
Phosphorous	:	0.035% max
Sulphur	:	0.040% max



AISI 4130 Steel Mechanical Properties

	TENSILE KSI	0.2% PROOF STRESS KSI	ELONGATION %	REDUCTION OF AREA %	HARDNESS HRC	HARDNESS BRINELL
Min	95	75	20	40	18	217
Max	130	110	–	–	22	235



The hardness of AISI 4130 steel can be adjusted through heat treatment. It can range from 179 to 229 HB (Brinell hardness), depending on the specific treatment process. This hardness contributes to its wear resistance and ability to withstand abrasion, making it suitable for applications where durability is crucial.

Heat Treatment Options



Proper heat treatment is essential to optimize the properties of AISI 4130 steel. Some common heat treatment processes include annealing, normalizing, quenching, and tempering.

Annealing softens the steel and relieves internal stresses. It is typically carried out at a temperature of around 843 to 871°C (1550 to 1600°F) followed by slow cooling. Normalizing refines the grain structure and improves mechanical properties by heating the steel to a temperature of 871 to 927°C (1600 to 1700°F) and then air cooling.

Quenching and tempering is a more complex process that provides high strength and toughness. The steel is heated to a temperature of 843 to 871°C (1550 to 1600°F), rapidly cooled in oil or water (quenching), and then tempered at a suitable temperature to achieve the desired properties.



Applications Across Industries

AISI 4130 steel finds extensive use in various industries due to its outstanding properties. In the aerospace industry, it is employed for manufacturing aircraft components such as landing gear, engine mounts, and structural parts. Its high strength-to-weight ratio and good fatigue resistance make it ideal for these demanding applications.

The automotive industry also makes significant use of AISI 4130 steel. It is utilized in the production of exhaust systems, suspension components, and drive shafts. The steel's weldability and toughness meet the requirements of these applications.

In the oil and gas industry, AISI 4130 steel is used for drilling equipment, wellhead components, and pipeline fittings. Its corrosion resistance and strength are essential in harsh operating environments.

General engineering applications include machinery parts, pressure vessels, and structural components. The versatility and reliability of AISI 4130 steel make it a popular choice in many engineering fields.

Advantages and Considerations

AISI 4130 steel offers several advantages. Its high strength allows it to handle heavy loads and stresses. Good toughness ensures it can absorb energy without fracturing easily. The steel's weldability simplifies fabrication and repair processes. It also has a certain degree of corrosion resistance, especially when properly treated.

However, it's important to note that like any material, AISI 4130 steel has its limitations. For example, it may require proper heat treatment to achieve optimal properties. Additionally, in some corrosive environments, additional protective measures may be necessary.

In conclusion, AISI 4130 steel is a valuable low-alloy steel with a well-balanced chemical composition and excellent mechanical properties. Its wide range of applications across different industries makes it a crucial material in many engineering and manufacturing processes. Understanding its characteristics, heat treatment options, and applications can help engineers and manufacturers make informed decisions when choosing the right material for their specific needs.
