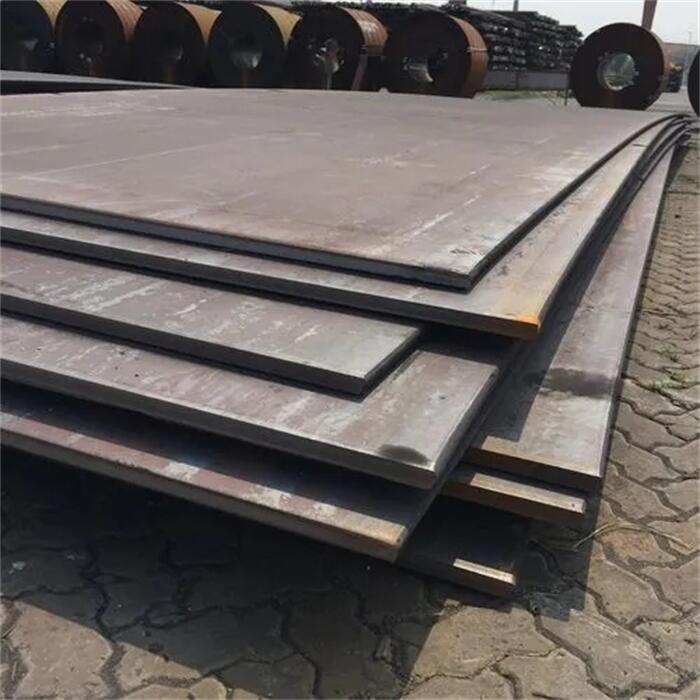

ABS Grade Eh36 Steel Plate For Shipbuilding
Products Description Refining grains has the following important impacts on the corrosion resistance of shipbuilding steel plates: I. Principles for increasing corrosion resistance Reducing the tendency of grain boundary corrosion: Refining grains greatly increases the number of grain...
Description
Products Description
Refining grains has the following important impacts on the corrosion resistance of shipbuilding steel plates:
I. Principles for increasing corrosion resistance
Reducing the tendency of grain boundary corrosion:
Refining grains greatly increases the number of grain boundaries. Grain boundaries are often weak links in the corrosion process because the atomic arrangement at grain boundaries is irregular and has higher energy, making it easier for chemical reactions to occur. However, when grains are refined, the grain boundaries become finer and more evenly distributed. This makes the diffusion path of corrosive media at grain boundaries more complex and tortuous, thus slowing down the invasion speed of corrosive media. For example, in the marine environment, for corrosive media such as seawater to penetrate into the steel plate, it needs to pass through numerous fine grain boundaries, increasing the difficulty and reducing the possibility of grain boundary corrosion.
At the same time, the refined grain boundaries can better hinder the diffusion of corrosive ions and reduce local corrosion at grain boundaries. For example, corrosive ions such as chloride ions diffuse relatively quickly in coarse-grained structures and are easily concentrated at grain boundaries and cause corrosion. In shipbuilding steel plates with refined grains, due to the refinement and uniform distribution of grain boundaries, the diffusion of chloride ions is more greatly hindered, reducing the concentration of chloride ions at grain boundaries and thus reducing the degree of local corrosion.
| Standard | CCS,ABS,GL,BV,DNV,NK,LR,KR,RINA |
| Grade | A/B/D/E,A32/D32/E32/F32,A36/D36/E36/F36,A40/D40/E40/F40,A131A/B/D/E/ AH32/DH32/EH32/AH36/DH36/EH36/AH40/DH40/EH40,NVA420/D420/E420, NVA460/D460/E460,NVA500/D500/E500,NVA550/D550/E550…. |
| Thickness | 2-300mm (2-100mm usually used) |
| Width | 1000-3000mm (1000-2200mm usually used) |
| Length | 1000-12000mm or as your request |
| Surface | Clean, finishing,blasting and painting according to customer requirement |
| Process | Hot-rolled, Controlled rolling, Normalizing, Annealing, Tempering, Quenching, N+T, Q+T, and other delivery states are available as required |
| Certificate | API,ISO,SGS,BV,CE etc |
| Quality | MTC will be provided with goods, third part inspection is acceptable, for example BV, SGS. |
| Package | Standard export seaworthy package,suit for all kinds of transport,or as required. |
| Container Size | 20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) |
| 40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) | |
| Trade term | Ex-Work,FOB,CNF,CFR,CIF,etc |
| Application | Widely used in a variety of architectural and engineering structures,such as |
| 1.) metal constructions such as buildings,bridges,ships; | |
| 2.) transmission tower, reaction tower; | |
| 3.) lifting transportation machinery; | |
| 4.) industrial furnace;boilers | |
| 5.) container frame, warehouse goods shelves, etc |
Improving the stability of the passivation film:
Refining grains helps form a denser and more stable passivation film on the steel plate surface. In the marine environment, a layer of oxide film, i.e., the passivation film, will form on the surface of shipbuilding steel plates, which can prevent corrosive media from further contacting the steel plate and play a protective role. When grains are refined, the number of active sites on the steel plate surface increases, which is conducive to the uniform formation of the passivation film. The refined grain structure makes the passivation film bond more closely with the matrix and improves the stability of the passivation film. For example, in the case of wave impact and seawater immersion, the passivation film on the surface of shipbuilding steel plates with refined grains can better resist the destruction of external forces and the erosion of corrosive media, prolonging the protection time of the passivation film and thus improving the corrosion resistance of the steel plate.
II. Advantages in practical applications
Extending service life:
For ships operating in the marine environment for a long time, corrosion resistance is a crucial performance indicator. Shipbuilding steel plates with refined grains have better corrosion resistance, which can reduce the thinning of steel plate thickness and structural damage caused by corrosion and extend the service life of ships. For example, a cargo ship built with shipbuilding steel plates with refined grains has a significantly lower corrosion rate of the hull than a cargo ship using ordinary steel plates under the same marine environment and usage conditions, thus reducing the frequency of maintenance and replacement of steel plates and lowering operating costs.
In addition, in some special marine engineering fields such as offshore oil platforms and submarine pipelines, extremely high requirements are imposed on the corrosion resistance of materials. Shipbuilding steel plates with refined grains can also play an important role in these fields and improve the reliability and safety of engineering facilities.
Why Choose Us?
We take pride in our ability to provide custom solutions for our customers' unique needs.
We analyze and compare the previous products and the current technical situation of our ABS Grade Eh36 Steel Plate For Shipbuilding, and develop new technical specifications and processes.
Our customers trust us to deliver high-quality Cold-rolled Steel products on time and on budget.
We strictly implement the warm and thoughtful after-sales service, adhere to the development of good professional ethics.
We offer a wide range of Cold-rolled Steel products to meet diverse customer needs.
We adhere to the customer-centric and brand-oriented business philosophy, and continue to provide customers with reliable and excellent products and services.
Our factory is committed to upholding the highest standards of safety and quality.
All staff of our company and all departments work together to combine business management, professional technology, quantitative statistical methods and ideological education.
Our Cold-rolled Steel products are known for their durability and reliability.
Relying on the superior conditions and strong advantages of mass production, we are able to meet the different needs of our customers.
Hot Tags: abs grade eh36 steel plate for shipbuilding, China abs grade eh36 steel plate for shipbuilding suppliers, factory, S460QL, 440B, 254SMo, C63010, SUS304, 416 Stainless Steel
