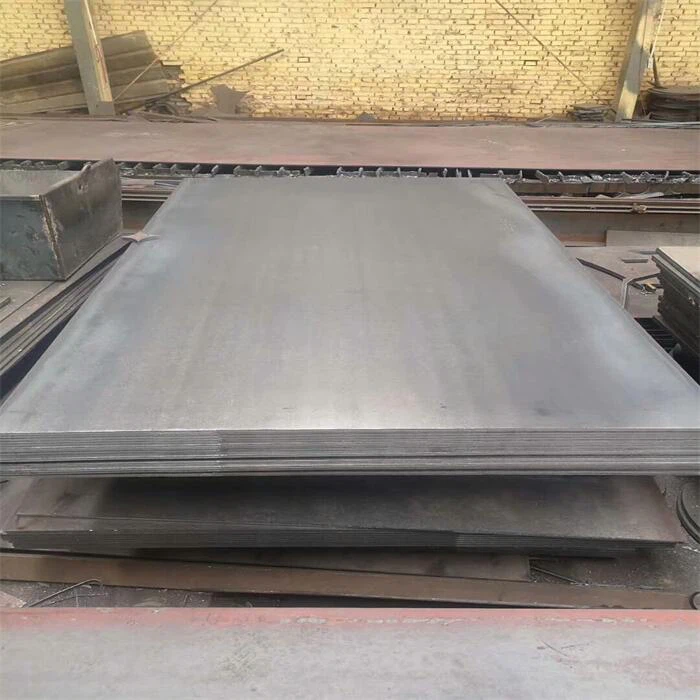

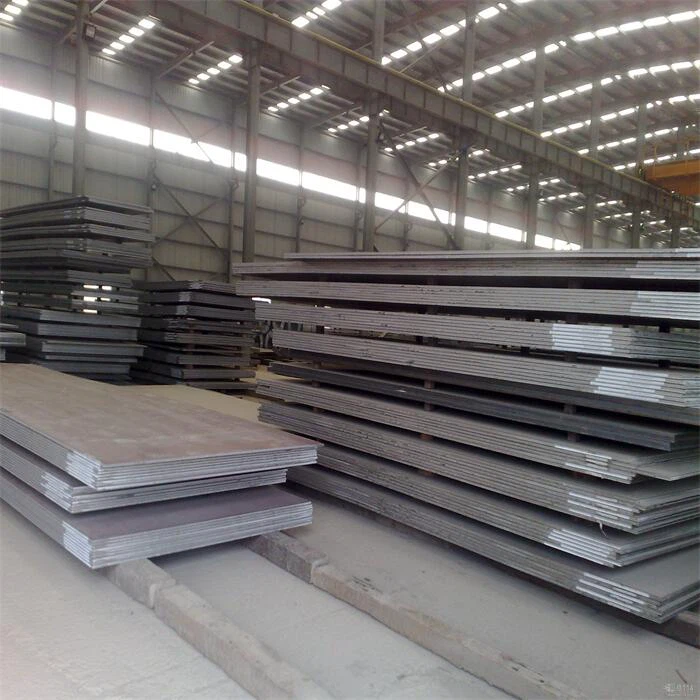

BV Marine Steel Plate Grade DH32

Comparison of the Performance Differences between BV Marine Steel Plate Grade DH32 and Other Similar Steel Grades



Strength



Yield Strength: BV Marine Steel Plate Grade DH32 has a relatively high yield strength, which is an important indicator of its ability to resist deformation. Compared to some common mild steel grades, its yield strength is significantly higher. This means that under the same load, DH32 will start to deform later, showing better load-bearing capacity. For example, when used in shipbuilding, it can better withstand the pressure and stress generated by the weight of the ship and the impact of the sea.

Tensile Strength: In terms of tensile strength, DH32 also has an advantage over other similar steel grades. It can withstand greater tensile forces without breaking, which is crucial for applications in marine environments where the structure is often subjected to various dynamic loads, such as waves and wind. This high tensile strength ensures the integrity and safety of the structure.



Toughness



Impact Toughness: DH32 has excellent impact toughness, which means it can absorb a certain amount of impact energy without cracking or breaking. This is particularly important in marine applications where the structure may be subjected to sudden impacts, such as collisions with icebergs in the case of icebreakers or impacts from floating objects in the sea. Compared to some other steel grades, its impact toughness is better, making it more suitable for harsh marine environments.

Fracture Toughness: Regarding fracture toughness, DH32 also shows good performance. It is less prone to brittle fracture, even in low-temperature environments. This is beneficial for ships and offshore structures that may operate in cold sea areas, ensuring the reliability and safety of the structure in different temperature conditions.



Grade	Chemical compostion %
C	Si	Mn	P	S	Als

D

≤0.21

≤0.35

0.6-1.2

≤0.035

≤0.035

≥0.015



Item	Thickness (mm)	Width (mm)	Length/coil diameter(mm)
Shipbuilding plate	6~50	1300~3000	3000~15000
Shipbuilding coil	6~20	1500~2000	760+20~760-70

Weldability



Welding Process: The weldability of BV Marine Steel Plate Grade DH32 is relatively good. It can be welded using various welding methods, such as arc welding and gas shielded welding. However, compared to some low-alloy steel grades with simpler compositions, the welding process of DH32 may require more precise control of welding parameters to ensure the quality of the welded joint. But overall, its weldability is still at a relatively high level, which is convenient for the construction and installation of marine structures.

Welded Joint Performance: The welded joints of DH32 have good mechanical properties. After welding, the strength and toughness of the welded joint can reach a level close to that of the base metal, ensuring the overall performance of the structure. This is different from some steel grades where the welded joint performance may be significantly lower than that of the base metal, affecting the safety and reliability of the structure.
