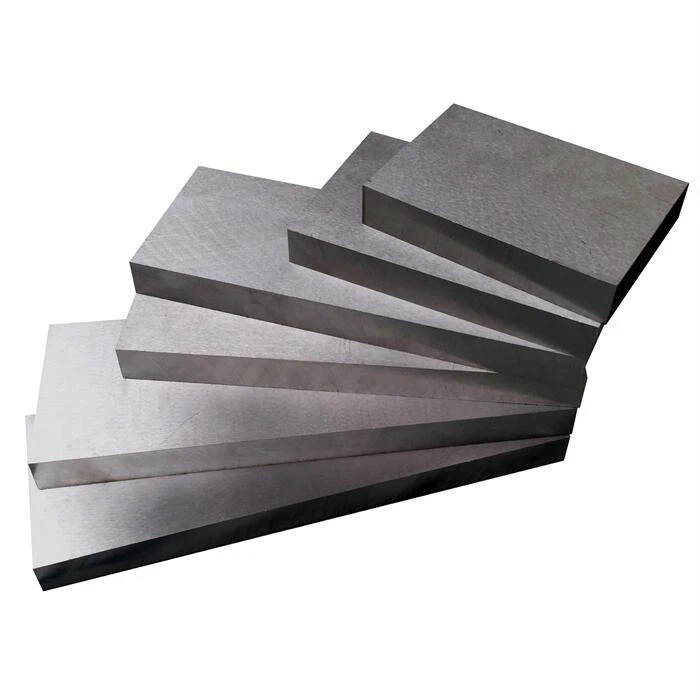

Lr Hot Rolled Ah36 Shipbuilding Marine Steel Plate





LR hot rolled AH36 shipbuilding marine steel plate is a kind of high-performance steel used in shipbuilding. The following is a detailed introduction:

Basic Information



Standards and Specifications: It complies with the relevant standards of LR (Lloyd's Register) and also meets various international and domestic general standards such as ASTM, AISI, GB, JIS, DIN, and BS.

Production Process: It is produced by the hot rolling process. The steel billet is heated and then rolled, enabling it to possess good mechanical properties and surface quality.

Chemical Composition



The main chemical components include: the carbon (C) content is ≤ 0.18%, the silicon (Si) content is ≤ 0.50%, the manganese (Mn) content is between 0.9% - 1.6%, the phosphorus (P) content is ≤ 0.035%, the sulfur (S) content is ≤ 0.035%, and the aluminum (Als) content is ≥ 0.015%.

Mechanical Properties



Yield Strength: ≥ 355 MPa.

Tensile Strength: 490 - 630 MPa.

Elongation: ≥ 21%.

Impact Test: The V-notch impact test is carried out at 0 °C. The impact energy Aku ≥ 34 J (when the plate thickness is ≤ 50 mm), ≥ 24 J (when the plate thickness is between 50 - 70 mm), and ≥ 34 J (when the plate thickness is between 70 - 100 mm).

Product Advantages



High Strength: It has relatively high yield strength and tensile strength, capable of withstanding large external forces and pressures. It is suitable for the construction of the hull structures of large ships, which can reduce the weight of the ship hull, improve the cargo-carrying capacity and sailing performance of the ship.

Good Toughness: Especially in low-temperature environments, it can still maintain good toughness. For example, it has good impact resistance at 0 °C, which can effectively prevent brittle fractures and other safety accidents when ships are sailing in cold sea areas.

Excellent Welding Performance: It can be conveniently processed by welding, and the strength and toughness of the welded joints are equivalent to those of the base metal, ensuring the integrity and reliability of the ship structure.

Corrosion Resistance: It contains certain alloy elements, endowing it with relatively good corrosion resistance to seawater and prolonging the service life of the ship.

Application Fields



It is widely used in the manufacturing of the hull structures of various ships, including but not limited to container ships, large cargo ships, luxury cruise ships, ferries, etc. It can also be used in the construction of offshore platforms and other marine engineering structures.

Common Specification Sizes



Thickness: Usually between 2.5 - 120 mm. Some manufacturers can produce a wider thickness range, such as 2 - 300 mm.

Width: Generally between 1000 - 3000 mm.

Length: It can be customized according to customer requirements.

Surface Treatment



Common surface treatment methods include hot rolling state, quenching, tempering, normalizing, etc., which can be selected according to specific usage requirements and customer needs.

Packaging and Transportation



Packaging: Usually waterproof kraft paper and other packaging materials are adopted to prevent corrosion and damage during transportation and storage.

Transportation: Multiple transportation methods can be chosen, such as sea transportation and land transportation. The product packaging meets international standards and is suitable for long-distance transportation.







Specification we supply：

Thickness	3-200mm
Width	1500-4000mm
Length	5000-15000mm
