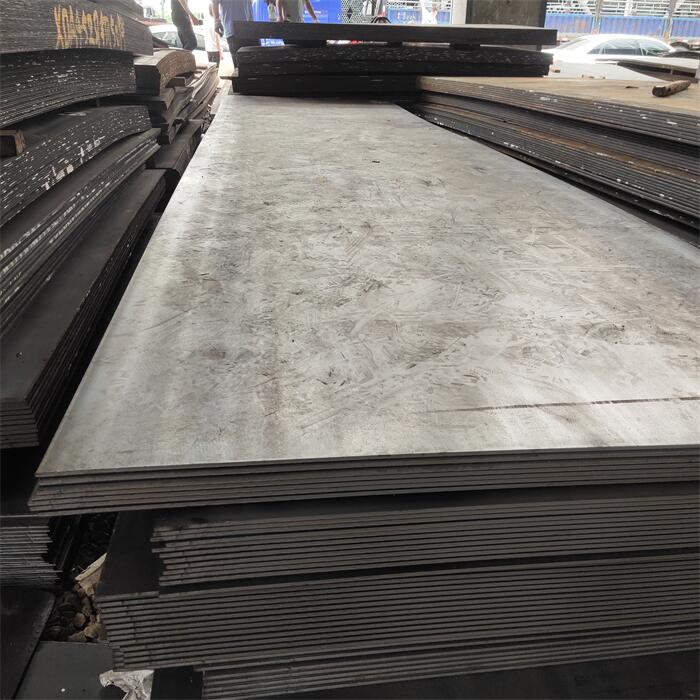

Introduction to CCS F550 Steel Plate

CCS F550 steel plate is a high - strength steel plate. CCS stands for China Classification Society. The CCS standards play a crucial role in the field of shipbuilding and marine engineering. The F550 grade indicates its minimum yield strength of 550 MPa.

This type of steel plate is designed to meet the demanding requirements of structural applications in harsh marine environments. It has excellent mechanical properties such as high strength and good toughness, which enable it to withstand heavy loads and impacts that are common in ships and offshore structures.







Applications

Shipbuilding: It is widely used in the construction of various types of ships, including cargo ships, container ships, and oil tankers. In ship hulls, CCS F550 steel plates can be used for the construction of the bottom plates, side shells, and decks. The high strength of the steel allows for the reduction of the plate thickness while still maintaining the required structural integrity, which can lead to weight savings and increased cargo - carrying capacity.



Offshore Structures: Such as oil and gas platforms. These structures are constantly exposed to harsh sea conditions, including strong winds, waves, and corrosive seawater. CCS F550 steel plates provide the necessary strength and durability to support the heavy equipment and withstand the environmental loads in offshore installations.









Element	CCSF550 Max %	Element	CCSF550 Max %
C	0.18	Ni	0.80
Mn	1.60	Mo	0.08
Si	0.10-0.55	Al	0.020 min
S	0.025	Nb	0.20-0.05
P	0.025	V	0.05-0.10
Cu	0.35	Ti	0.0007-0.05
Cr	0.20	N	0.009









Welding and Fabrication

When welding CCS F550 steel plates, it is essential to use appropriate welding procedures and consumables. The welding process needs to be carefully controlled to avoid issues such as cold cracking and loss of mechanical properties in the heat - affected zone. Pre - heating and post - welding heat treatment may be required depending on the thickness of the plate and the welding conditions. The steel plate is also machinable, allowing for the fabrication of complex structural components through cutting, bending, and other forming processes. However, due to its high strength, special attention needs to be paid to the forming parameters to prevent cracking and other defects.



Corrosion Resistance

Although CCS F550 steel plate has good mechanical properties, it is still vulnerable to corrosion in marine environments. To enhance its corrosion resistance, various surface protection methods can be used. These include coating systems such as epoxy coatings, zinc - rich coatings, and inorganic zinc silicate coatings. Cathodic protection can also be applied in combination with coatings to further protect the steel structure from corrosion. Regular inspection and maintenance of the protective coatings are necessary to ensure the long - term durability of the CCS F550 steel - based structures.
