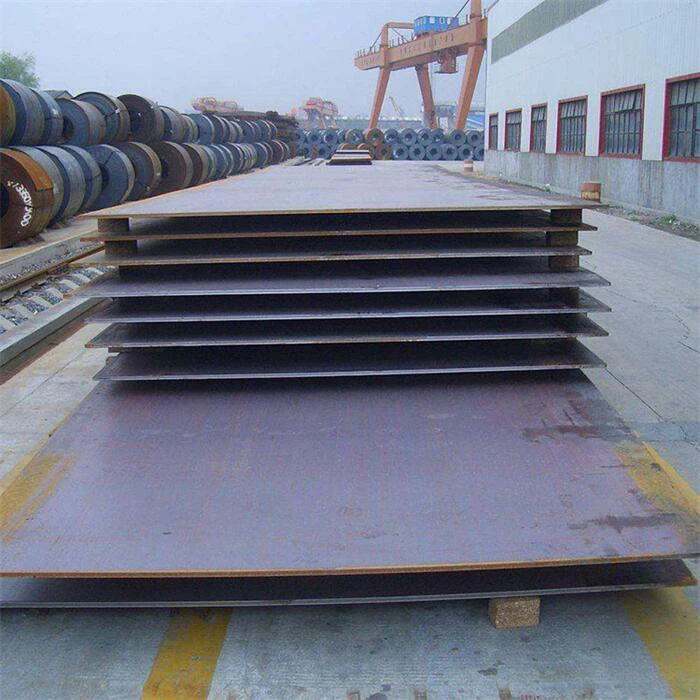

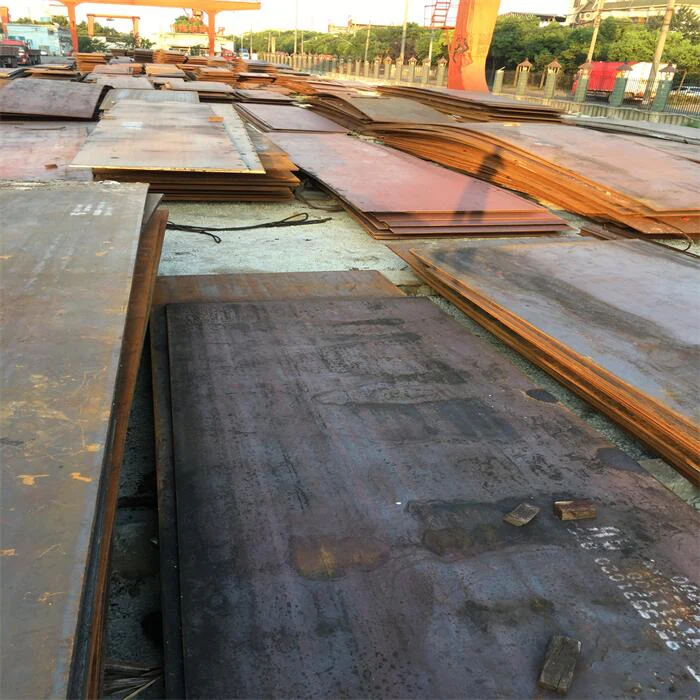

LR Grade A Shipbuilding Steel



LR (Lloyd's Register) Grade A shipbuilding steel has the following features:



Mechanical Properties



Strength:

Yield Strength: It has a minimum yield strength of around 235 MPa. This property ensures that the steel can withstand the initial deformation under load without permanent plastic deformation, which is crucial for the ship's structural integrity during normal service conditions.

Tensile Strength: The tensile strength typically ranges from 400 - 520 MPa. This indicates the maximum stress the steel can endure before fracturing and is important for withstanding the dynamic and static loads experienced by the ship.

Ductility: The steel has a certain level of ductility, usually with an elongation at break of around 22% (for a gauge length of 5.65√S₀, where S₀ is the original cross - sectional area). This ductility allows the material to deform plastically before failure, which is beneficial for absorbing energy during impacts or sudden load changes.

Impact Resistance: LR Grade A steel is designed to have sufficient impact resistance. While it may not have the extremely high impact resistance of some higher - grade steels, it meets the requirements for normal shipbuilding applications in non - extreme temperature environments.



Chemical Composition



Carbon (C): The carbon content is usually limited to around 0.23% maximum. This helps in maintaining a balance between strength and weldability, as higher carbon content can lead to brittleness and welding difficulties.

Manganese (Mn): Manganese is present in amounts typically ranging from 0.60 - 1.60%. Manganese contributes to the strength and hardenability of the steel.

Silicon (Si): Silicon content is usually around 0.10 - 0.50%. It helps in the deoxidation process during steelmaking and also has a minor influence on the mechanical properties.





Applications in Shipbuilding



Hull Construction: LR Grade A steel is widely used in the construction of the ship's hull. The hull plates, frames, and other structural components require a material that can withstand the hydrostatic pressure, wave impacts, and general service loads. This grade of steel provides a cost - effective solution for the majority of ship types.

Internal Structures: It is also used for various internal structures such as bulkheads, decks, and supporting frames within the ship. These components need to have sufficient strength and durability to support the cargo, crew, and equipment on board.







Item	Thickness (mm)	Width (mm)	Length/coil diameter(mm)
Shipbuilding plate	6~50	1300~3000	3000~15000
Shipbuilding coil	6~20	1500~2000	760+20~760-70
